Introduction:

The ball mill is the key equipment for crushing the material after it has been crushed. Ball mills are widely used in the production of cement, silicate products, new building materials, refractory materials, fertilizers, black and non-ferrous metal dressings and glass ceramics, dry or wet grinding of various ores and other grindable materials.

Working principle:

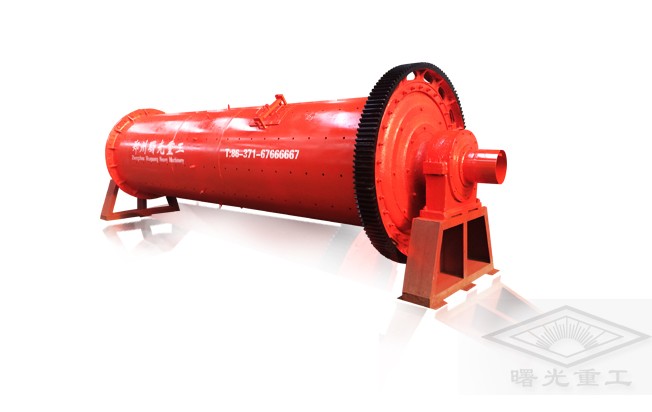

The ball mill is a horizontal cylindrical rotating device, an external gear transmission, two bins, a lattice ball mill. The material is uniformly fed into the first chamber of the mill by the feeding device through the hollow shaft of the feeding material. The chamber has stepped lining or corrugated lining, which is filled with steel balls of different specifications. The rotation of the cylinder generates centrifugal force to bring the steel ball to a certain height. After falling, it will hit and grind the material. After the material reaches the rough grinding in the first warehouse, it enters the second warehouse through the single-layer compartment board. The warehouse is provided with a flat lining plate with steel balls inside to further grind the material. The powder is discharged through the discharge raft to complete the grinding operation.

Structure features:

The machine consists of the main part of the feeding part, the discharging part, the turning part, the transmission part (reducer, small transmission gear, motor, electric control). The hollow shaft is made of cast steel, the inner lining can be replaced, the rotary large gear is processed by casting hobbing, and the barrel is embedded with wear-resistant lining, which has good wear resistance. The machine runs smoothly and works reliably.

Note: According to the material and the method of discharging, the dry ball mill and the wet lattice ball mill can be selected.

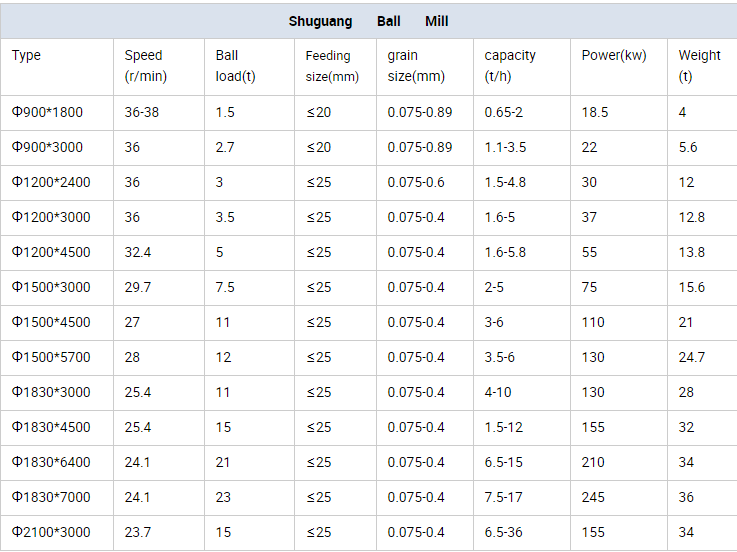

Technical Data:
