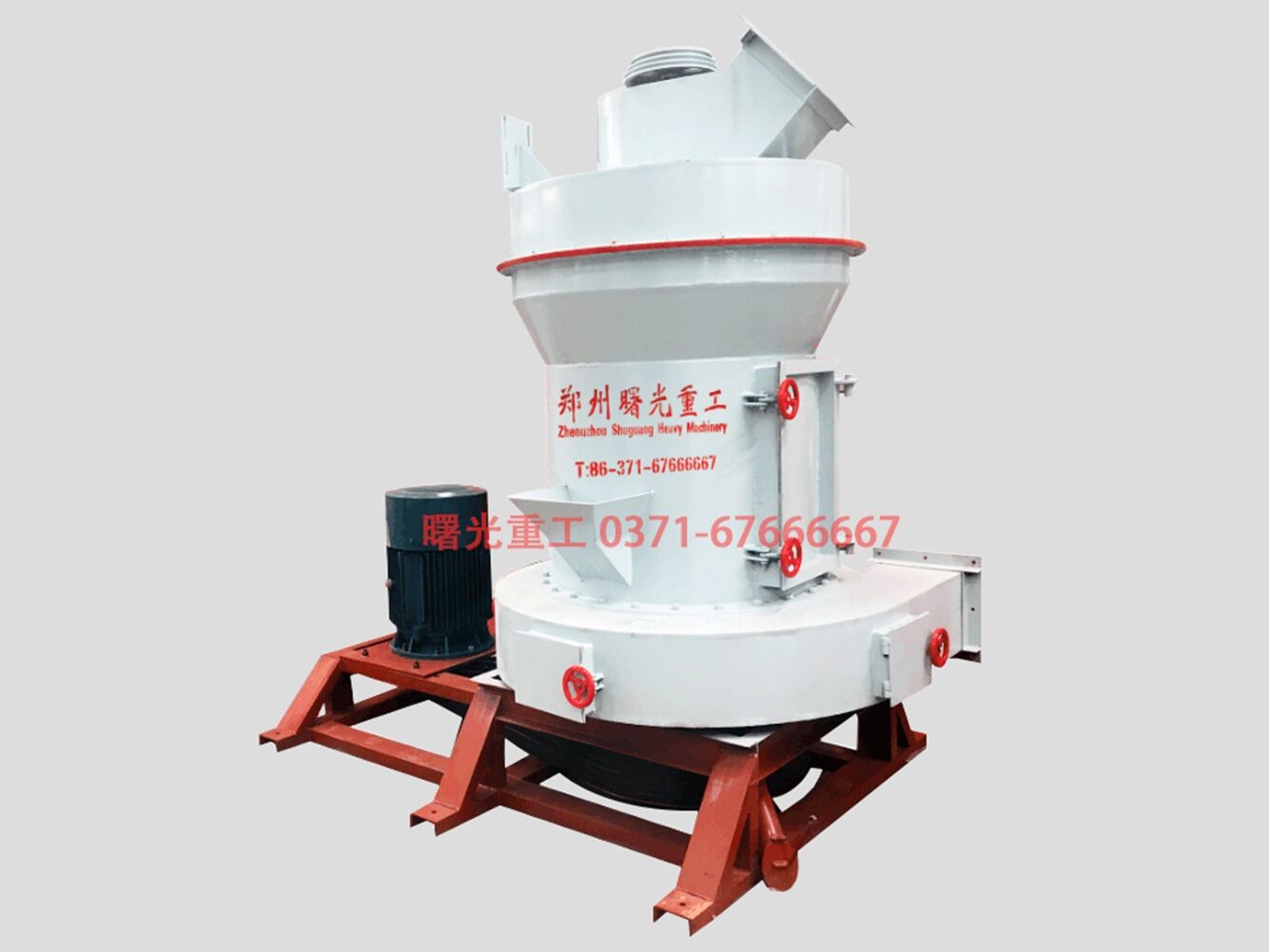

High quality Perlite powder pulverizer mill for sale

Product summary:Features of perlite powder pulverizer1.High efficient and energy savingCompared with other grinding mill, the capacity will be double based on the same final size and motor power. 2.Long service life for wear partsRollers and rings are made of special mat

0086-371-67666660

Product details

Features of perlite powder pulverizer

1.High efficient and energy saving

Compared with other grinding mill, the capacity will be double based on the same final size and motor power.



2.Long service life for wear parts

Rollers and rings are made of special materials by forged method.Generally, the service life is one year. If the machine is used to grind calcium carbonate or calcite, the service life can be 2-5 years.



3.High safety

No rolling bearing and screw in the grinding chamber.



4.Superfine fineness

The fineness can be D97≤5μm for one time.



5.Environmentally friendly and clean

The fine is collected by pulse dust collector, silencer is used to reduce the noise.


Components of perlite powder pulverizer

The components includes the following equipments:



Hammer crusher,bucket elevator,storage silo,vibrating feeder,main engine,frequency conversion classifier,dual cylone dust collector,pulse dust catcher,high pressure fan,air compressor,electrical control system.


Technical data of perlite powder pulverizer

Model

HGM8021

HGM9024

HGM10027

HGM10036

Average diameter (mm)

800

900

1000

1000

Ring numbers/level (pcs)

3

3

3

4

Roller numbers (pcs)

21

24

27

36

Speed of mainshaft (r.p.min)

230

200

180

180

Feeding size /(mm)

≤20

≤20

≤20

≤20

 final size(μm)

5-47

5-47

   5-47

5-47

Production capacity( t/h)

0.4-4.5

0.4-5.5

0.6-6.5

0.7-7.5

Overall dimensions(m) (LXWXH )

13.9x4x6.2

14.7x4.8x7.2

18x4.6x8.6

18x4.6x8.6

Motor power (kw)

145

192

263

263
