Introduction:

Zhengzhou Shuguang round vibrating screen professional manufacturer, this equipment is a circular motion, is a multi-layer, high-efficiency new vibrating screen. The circular vibrating screen adopts the cylindrical eccentric shaft exciter and the partial block to adjust the amplitude, the material sieve line length and the screening specifications are many, the structure is reliable, the excitation force is strong, the screening efficiency is high, the vibration noise is small, the sturdy and durable, the maintenance Convenient, safe to use, circular vibrating screen is widely used in the classification of products in mining, building materials, transportation, energy, chemical and other industries.

Structure and principle:

Mainly composed of screen box, vibration exciter, suspension (or support) device and motor. The motor is driven by a V-belt to drive the spindle of the exciter to rotate, and the screen box is vibrated due to the centrifugal inertial force of the unbalanced weight on the exciter. Changing the exciter's eccentricity gives different amplitudes.

Performance characteristics:

1. The equipment maintenance and repair is simple and convenient, and the operation efficiency of the whole machine is obviously improved.

2. It adopts flexible joints such as cross shaft universal joint drive shaft or rubber coupling, and it runs smoothly.

3. The structure of the screen machine tends to be simplified, which is beneficial to improve the manufacturing process level and assembly precision of the equipment.

4. The screening machine has higher screening efficiency, larger processing capacity, longer service life and longer service life.

5. The exciter adopts the block eccentric form, which not only increases the single-excitation force of the eccentric mass of the exciter, but also the excitation force can be randomly controlled, which is convenient for modular design and use.

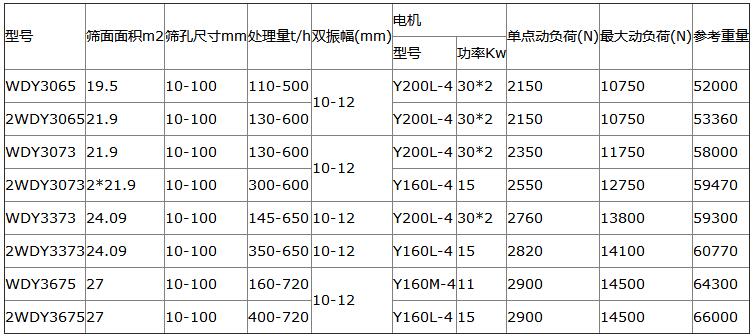

Technical Data:
