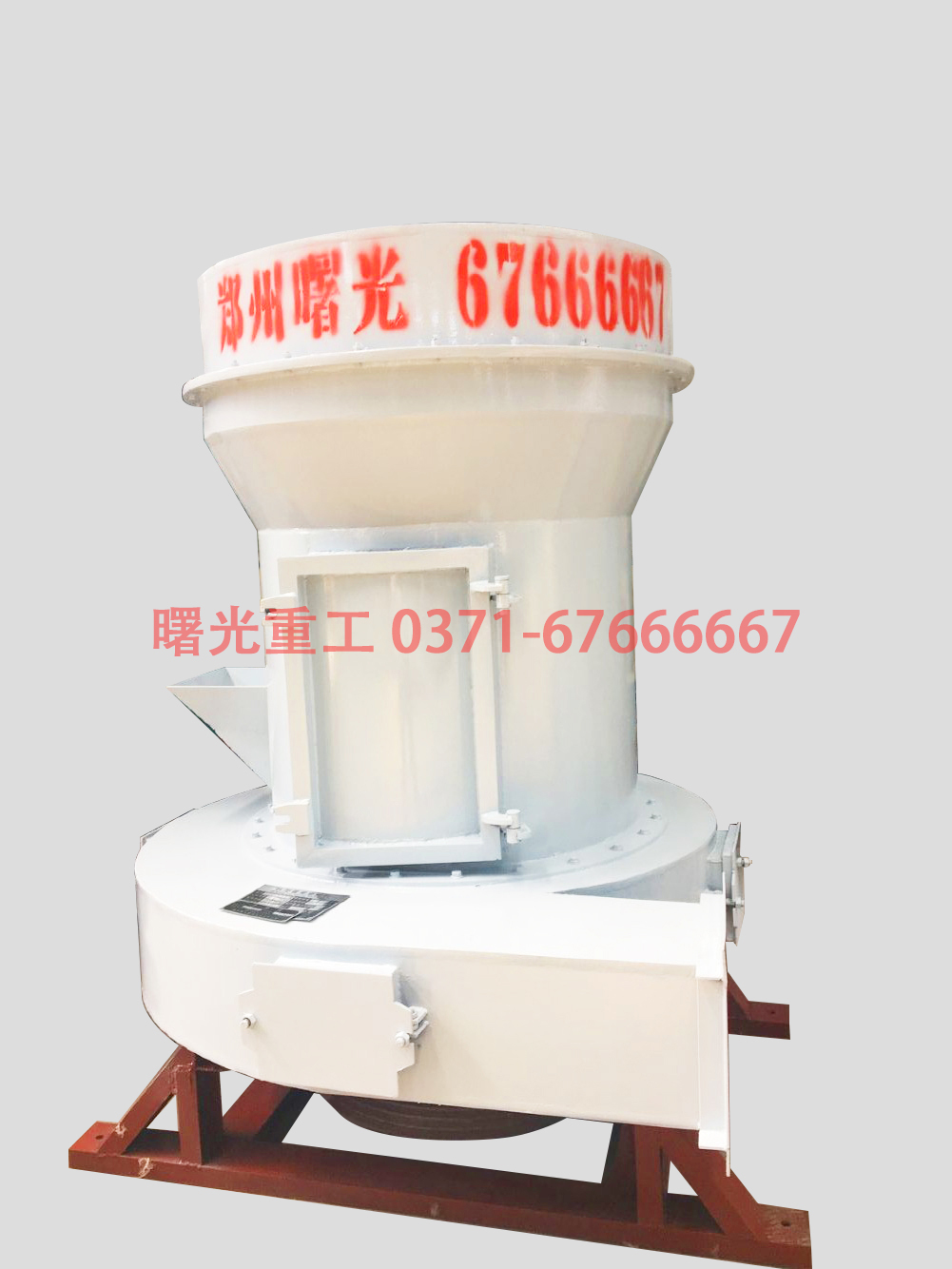

Structure of Raymond Mill

Raymond mill is mainly composed of main engine, analyzer, blower, finished cyclone separator, pipeline device, motor and so on. The main engine is composed of frame, intake volute, shovel cutter, grinding roller, grinding ring, housing and motor. Auxiliary equipment includes jaw crusher, bucket elevator, electromagnetic vibration feeder, electronic control cabinet, etc. Users can choose flexibly according to the situation on site.

1. The whole machine is a vertical structure with small floor area and strong system. It can form an independent production system from rough processing of raw materials to conveying to powder making and final packaging.

2. Compared with other grinding equipment, the pass-through screening rate is as high as 99%.

3. The main drive device of Raymond Mill adopts hermetic gearbox and belt wheel, which has smooth transmission and reliable operation.

4. The important parts of Raymond mill are made of high-quality castings and profiles. The process is fine and rigorous, which ensures the durability of the whole set of equipment.

5. The electric system adopts centralized control,the grinding workshop can basically achieve unattended operation and maintenance.
